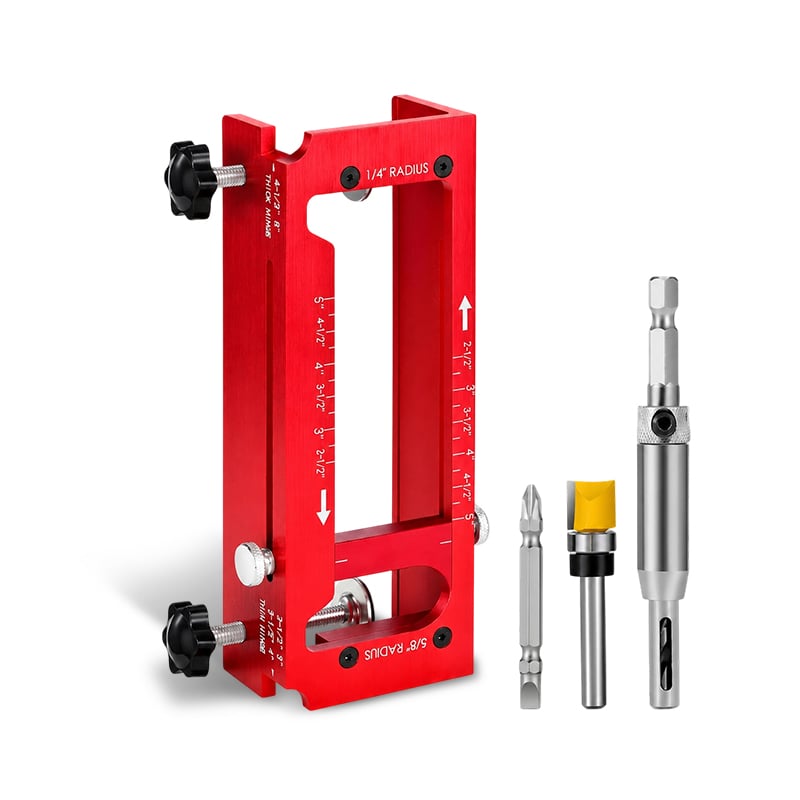

Streamline your door installation process with this high-precision aluminum alloy hinge template, engineered to fit all standard door hinges and deliver professional results with every cut.

FEATURES

• Universal Hinge Compatibility: This versatile tool is designed to work with all standard door hinges, featuring dedicated settings for 5/8" radius round hinges, 1/4" radius round hinges, and 90-degree square hinges for comprehensive project support.
• Adjustable Precision Settings: The jig includes a moving guide that regulates length and a built-in router gauge to accurately set the depth. It supports a wide range of hinge lengths and router bit depths including 2.5", 3", 3.5", 4", 4.5", and 5".
• Durable Aluminum Alloy Build: Constructed from high-quality Aluminum Alloy 6061, this template provides a stable and secure platform. The robust material ensures the clamp stays tightened and the guide remains mark-in-place secure during heavy operation.
• Integrated Installation Workflow: Beyond routing, the system includes a self-centering hinge bit for perfectly aligned screw holes and a double-ended driver bit for a drill, allowing you to install hardware immediately after grinding out the hinge shape.
• Professional On-Site Application: Designed for both DIY and professional carpentry, this jig allows you to accurately grind out corresponding hinge shapes on any door frame or door slab, ensuring a tight, secure, and clean hardware fit every time.

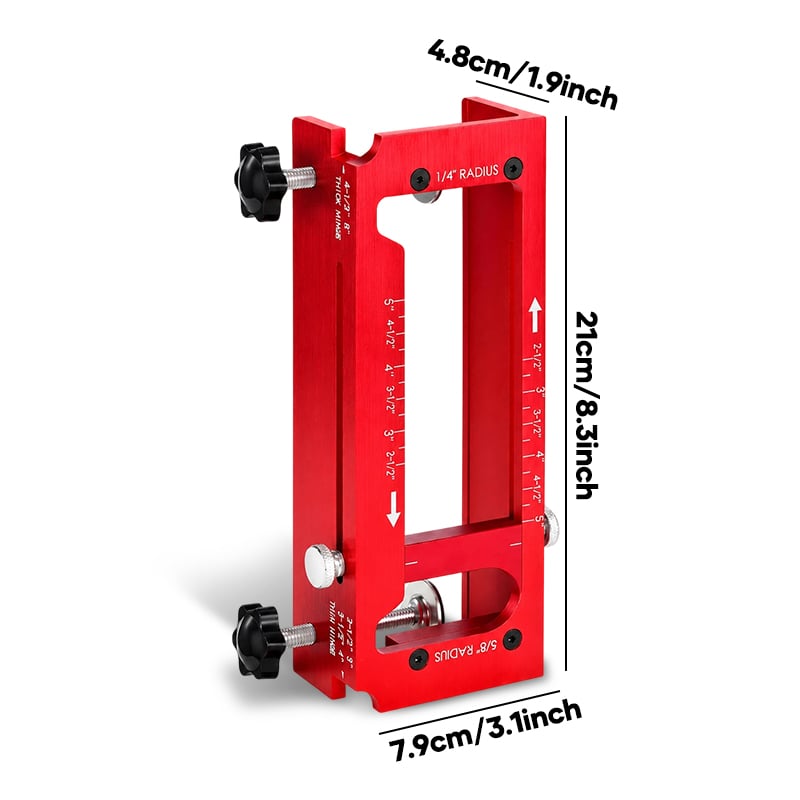

SPECIFICATIONS

• Material: Aluminum Alloy 6061

• Colors: Red, Blue

• Hinge Compatibility: Round (5/8" & 1/4" Radius), Square (90 Degrees)

• Length/Depth Range: 2.5", 3", 3.5", 4", 4.5", 5"

PACKAGE

• 1 x Door Hinge Mortiser

• 1 x Router Bit

• 1 x Self-Centering Hinge Bit

• 1 x Double-Ended Screwdriver Bit

• 1 x User Manual

NOTE

• A manual chisel is required for precision corner finishing when working with 90-degree square hinges.
